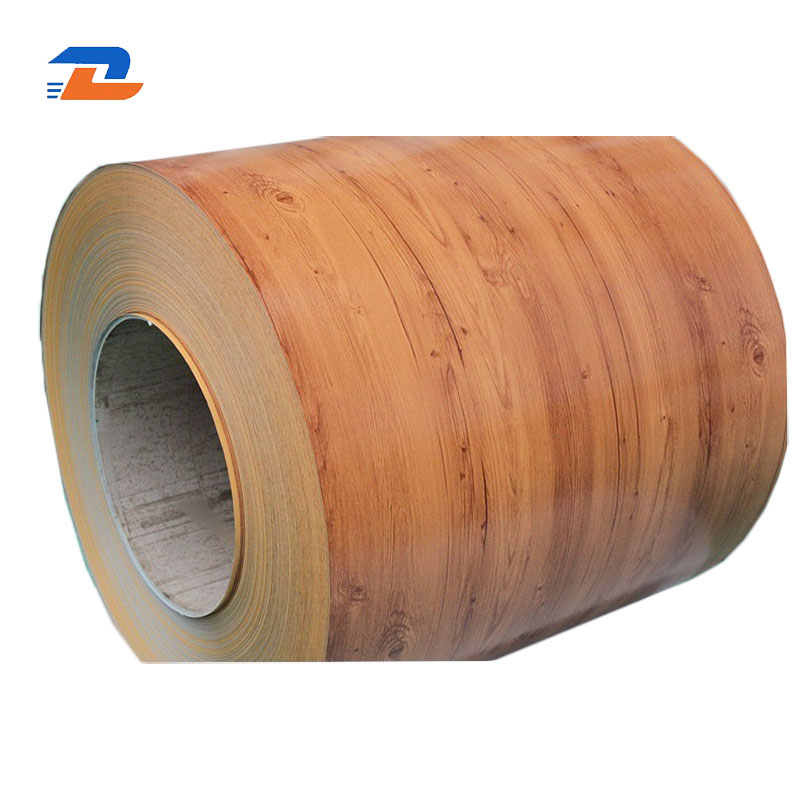

Pre-painted coils are produced by coating a layer of paint on the surface of cold rolled, galvanized or galvalume coils. Aesthetic appeal and durability are the key features of color coated steel coils. A wide selection of colors is available to the customer and paints designed to meet specific end use could be specified. Our pre-painted coils are suitable for direct interior as well as exterior application, sandwich panels and so on
We are committed to exploring the international market. Our customers come from all over the world, such as Africa, Latin America, Middle East, Southeast Asia, Europe, etc. Our high quality and low price products have won their recognition.| Standard | JIS G3322 CGLCC ASTM A755 CS-B | Surface coating color | RAL colors |
| Back side coatingcolor | Light grey ,white and so on | Package | export standard package or as request |
| Type of coating process | Front: double coated&double drying. Back: double coated&double drying, single-coated&double drying | ||
| Type of substrate | hot dipped galvanized, galvalume, zinc alloy, cold rolled steel, aluminum | ||
| Thickness | 0.16-1.2mm | Width | 600-1250mm |
| Coil Weight | 3-9Tons | Inside Diameter | 508mm Or 610mm |
| Zinc Coating | Z50-Z275G | Painting | Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um |
| Coating introduction | Top paint: PVDF, HDP, SMP, PE, PU | ||
| Prime paint: Polyurethane, Epoxy, PE | |||
| Back paint: Epoxy, Modified polyester | |||
| Productivity | 150,000Tons/year | ||
